Piping components for chilled water systems

Cooling water systems: crucial for keeping processes running

Where heat is created, cooling must be provided to control the heat. Many manufacturing and combustion processes have substantial temperature increases as a result of creating and converting energy. Other processes need heat to come about. Examples include combustion processes to produce electricity and cracking processes to separate substances and elements.

Once the heat has been used to achieve the goal, the system must be cooled to prevent damage to critical components. Cooling water is used for this purpose. Local sources such as lakes, rivers or seawater are usually used for this cooling water. The nature of the cooling water and the continuous basis when these systems are required place specific demands on the components used.

Valves for cooling water

Because cooling is a critical element of the production process, multiple cooling water lines are often used in parallel with each other. These are often relatively large pipes, allowing as much cooling water as possible to be supplied simultaneously.

When seawater is used, it is important that all valves are suitable for this corrosive medium. Common types of valves include check valves to prevent return flow, butterfly valves to control supply and control valves to regulate the amount of flow. Because of the critical nature of the system, it is important that these elements achieve a long stand time.

Hanwel B.V. supplies double eccentric check valves with a hydraulic brake system, butterfly valves, ball valves and gate valves for cooling water systems.

Please contact us for appropriate advice.

‍

Rubber expansion joints for cooling water systems

Cooling water is pumped in large quantities from the origin of the water to the parts to be cooled. Both the operation of the pumps (vibrations) and temperature differences of the medium create stress in the piping system that must be absorbed. The most commonly used type of expansion joint for this purpose is the rubber expansion joint.

In cooperation with Stenflex GmBH, Hanwel supplies rubber expansion joints that realize very long delivery times for chilled water systems. Depending on the requirements, we can supply axial, lateral or angular expansion joints so that your system is properly protected.

‍

Stainless steel expansion joints for cooling water systems

Because stainless steel expansion joints have good pressure resistance and can handle a wide range of temperature levels, they are suitable for a very wide range of applications.

For this reason, they are also widely used in cooling water systems. The advantage of stainless steel expansion joints over rubber expansion joints is that they can be fully customized. Regardless of the desired building size, the required movements and the desired construction, we can always design and supply a suitable stainless steel expansion joint. Thus we are able to accommodate axial, lateral and angular movements. A combination of these movements is also possible.

A stainless steel expansion joint is not a series product and will always be custom made. Please contact us for advice.

‍

Pipe supports for cooling water systems

Like other piping systems, chilled water systems must be properly and securely fastened. This can be done in an upright manner or in a suspended manner.

Depending on your local requirements and construction possibilities, we can supply pipe supports, pipe brackets, pipe clamps, wire parts and various fastening parts. We have a wide range of pipe supports in stock in Hengelo so they can be sent to your construction site within a day. This includes both fixed pipe supports / pipe shoes and height-adjustable variants in diameters from DN15 to DN400.

Contact our specialists for options.

‍

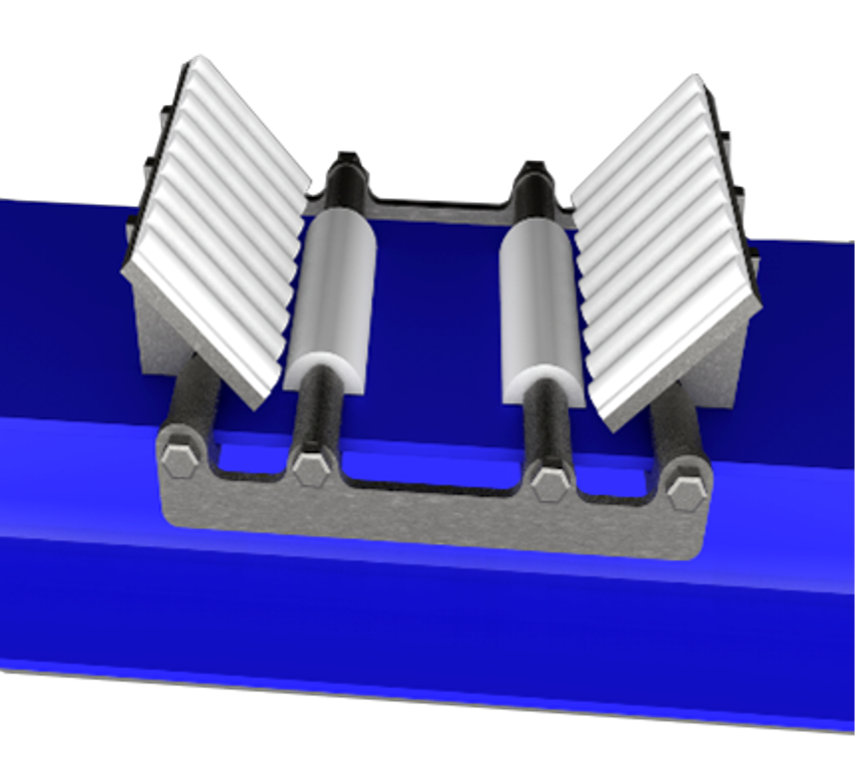

Clambrace supports: corrosion protection for pipes

In many pipe systems, corrosion occurs over time as water builds up between the steel structure (e.g., an H beam) and the steel support (e.g., a pipe shoe). Our Clambrace clamping systems prevent steel-to-steel contact through plastic protection between structure and support. A major additional advantage of this system is that there is no need for welding or drilling in the structure and therefore no need for on-site permits. The clamping of supports means not only easy fixing, but also easy dismantling if needed.

Our specialists will be happy to help you with personal advice.

‍

PTFE plain bearings for cooling water systems

In cooling water systems, movements can occur when the system ''heats up'' or ''cools down.'' PTFE plain bearings are used where devices or piping must be able to move with a very low frictional force. The PTFE slide plates can take a high axial load and have a friction value less than 0.1. The bearings consist of a carrier containing PTFE sliding plates and a polished stainless steel counter bearing.

Our specialists will be happy to assist you with specific questions.

‍
